DejaVoo Terminal Setup on RetailTime POS

Valor VP800 setup

Overview

  • RetailTime POS works on Valor VP800 device.

Requirements

  • Must have at least the Essential Plus package to use Valor Terminal or any other card reader as a payment gateway with RetailTime POS.

Valor Terminal Setup in Back Office

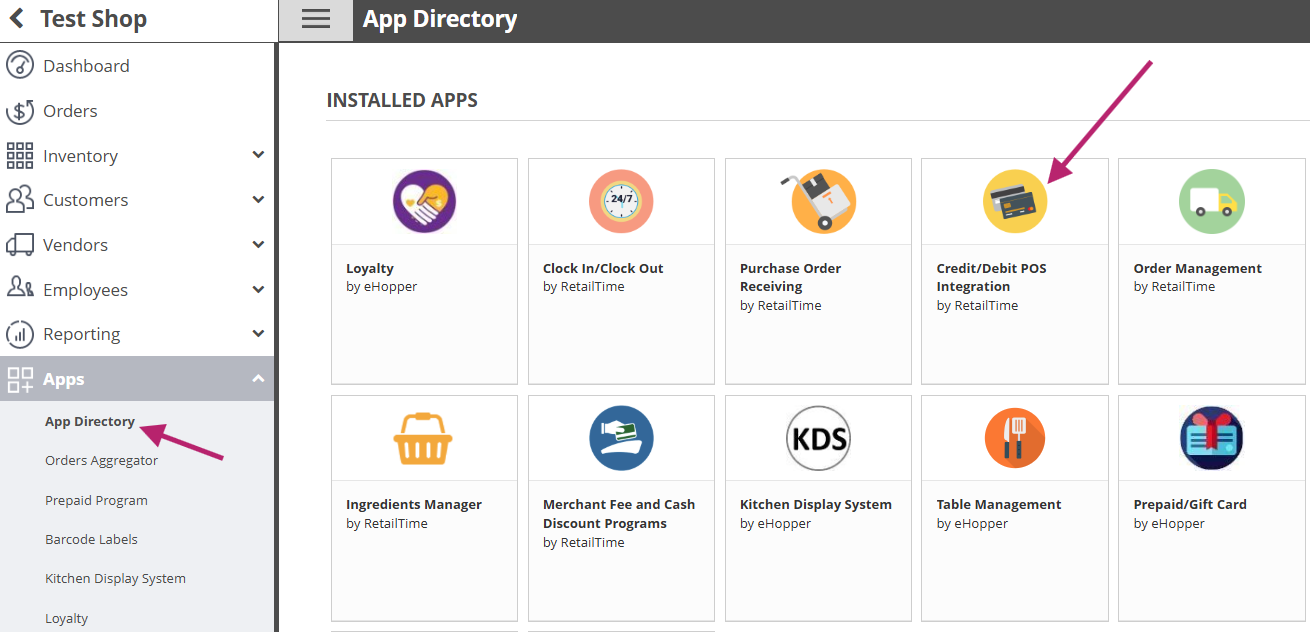

1. In Back Office, go to Settings--->Apps--->App Directory--->install Credit/Debit POS integration App



2. Go to Settings--->Store Settings--->select the store that you are setting up Valor on.

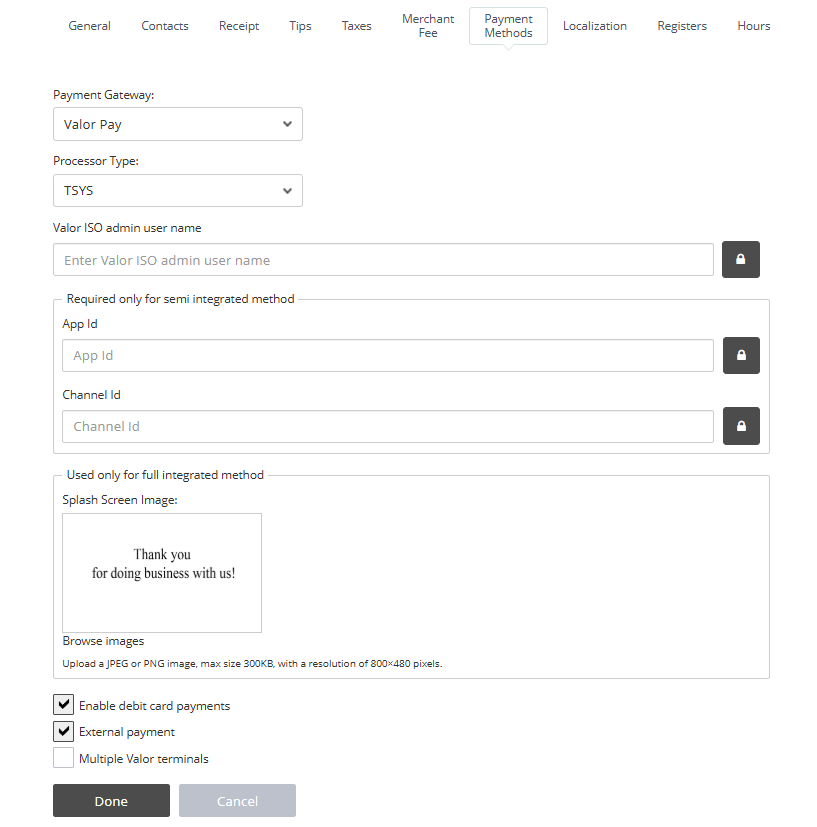

3. Click Payment Gateway tab--->select Valor in Payment Gateway drop-down menu > select your processor > enter ISO username > enter App ID --->click Done

Note: the integration credentials are to be provided by the party that configured your terminal.

Valor Terminal activation

Launch your Valor VP800 terminal and follow the steps (connect to WiFi and enter the EPI provided to you).

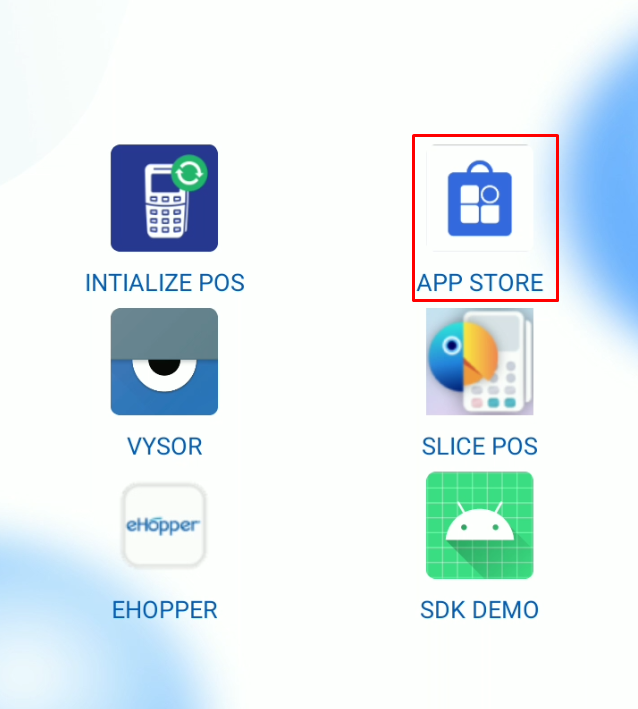

On the terminal main page, go to App Store/Valor Store->Locate RetailTime POS app ->Press install


Valor Terminal Setup in RetailTime app


Launch RetailTime POS and go to Settings--->Terminal Setup--->click Add Terminal button

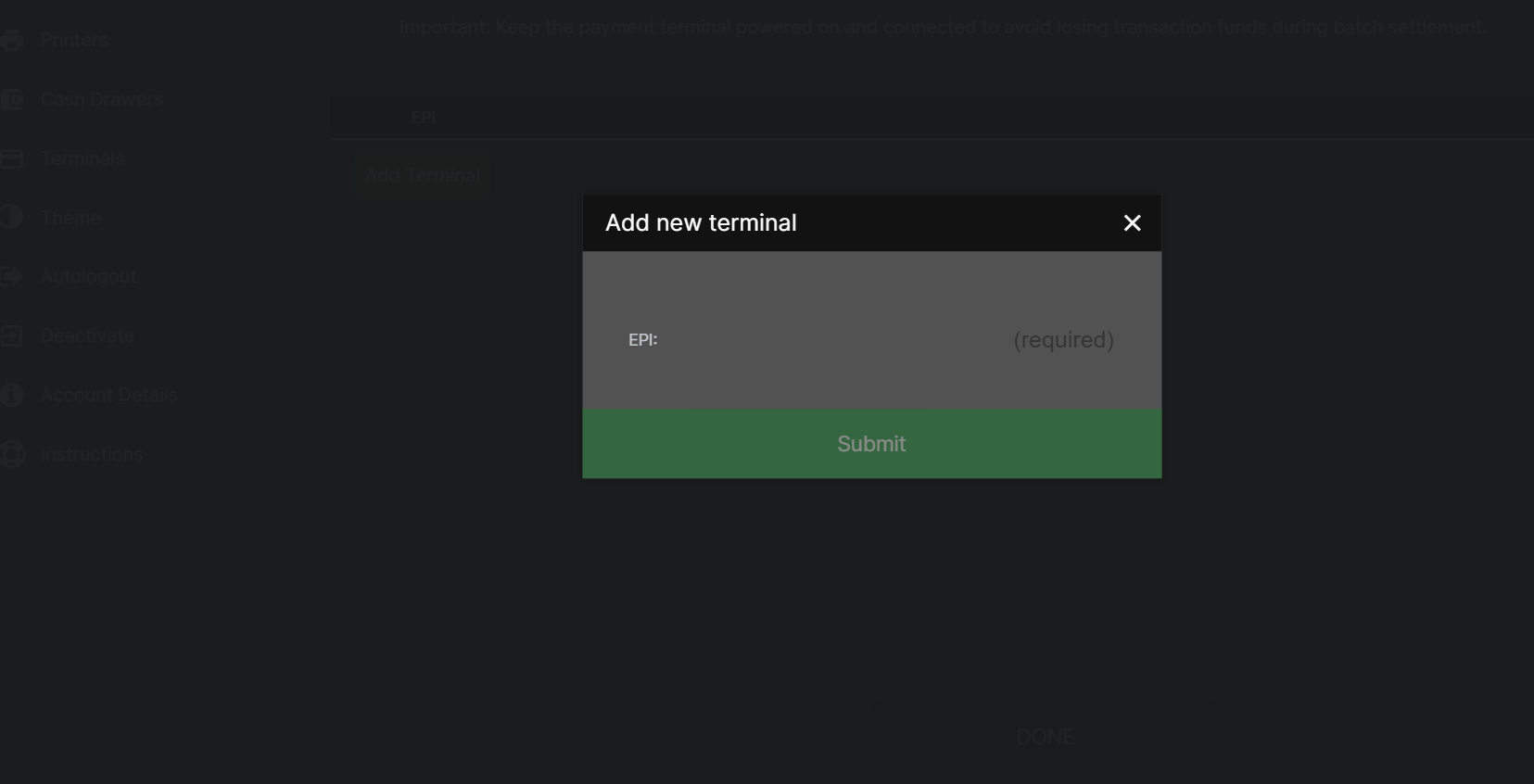

5. Input EPI of Valor Terminal and click Submit


6. Click Done on the Terminal Setup screen.

You may now run a test transaction.


Idea
The paper size for the device is 2 1/4" x 55 ft. It can be purchased here on Amazon. Click here.
InfoIf you are still having issues after following these steps, please contact support@retailtime.com
